Power Management IC - I3C Basic Interface IP

Description

Power Management IC (PMIC) is designed for DDR5 RDIMM, DDR5 LRDIMM, DDR5 NVDIMM application. PMIC is used for switching and LDO regulators. PMIC-I3C Interface used to select suitable power fit for various application environment. PMIC device is intended to operate up to 12.5MHz.

Features

  • Maximum Operating speed 12.5MHz
  • Flexible Open Drain IO (I2C) and Push Pull (I3C Basic) IO Support
  • Multi Time Programmable Non-Volatile Memory
  • Programmable and DIMM specific registers for customization
  • Error log registers
  • Input and output power good status reporting mechanism
  • Packet Error Check (PEC) Function
  • Parity Error Check Function
  • Bus Reset Function
  • I3C Basic mode Supports
    • Write Mode
    • Read Mode
    • Packet Error Code (PEC) Supported
    • Default Read Operation
  • Support In Band Interrupt (IBI)
  • I2C mode Supports write, read and default read operation
  • PEC and Parity error Handling
  • CCC error Handling
  • I3C Basic Common Command Codes (CCC)
    • DEVCTRL
    • SETHID
    • SETAASA
    • ENEC
    • DISEC
    • RSTDAA
    • DEVCAP
    • GETSTATUS

Block Diagram

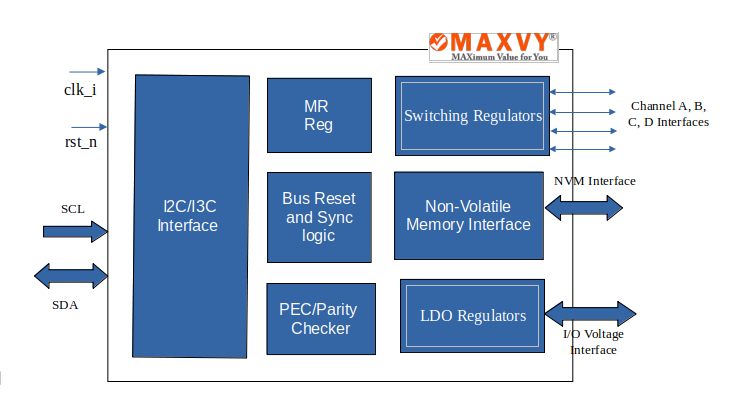

pmic mipi i3c block diagram

Application

  • DDR5 DIMM Application Environment
  • DDR5 NVDIMM Application Environment
  • Automotive Devices
  • Memory Devices
  • Power Mangement Devices
  • Defense / Aerospace / Customer Electronics

Deliverables

  • Verilog Source code
  • User Guide
  • IP Integration Guide
  • Simulation Script
  • Synthesis Script
  • Encrypted UVM Verification Environment
  • cocotb Verification Environment
  • Basic Testsuite
  • Firmware code
