The Maxvy's MIPI-I3C VIP provides configurable option
to select I3C master/secondary master/slave based on the MIPI I3C DUT function as per user specification.
Our VIP supports both Single Data Rate (SDR) and High Data Rate (HDR) mode operations. Our VIP has a Bus
Monitor for performing all protocol checks via assertion and functional coverage option. The monitor also
performs key protocol checks and reports errors for non compliance with Specification.
Applications
Consumer electronics.
Defense
Aerospace
Virtual Reality
Augmented Reality
Medical
Biometrics (Finger prints, etc)
Automotive Devices
Sensor Devices

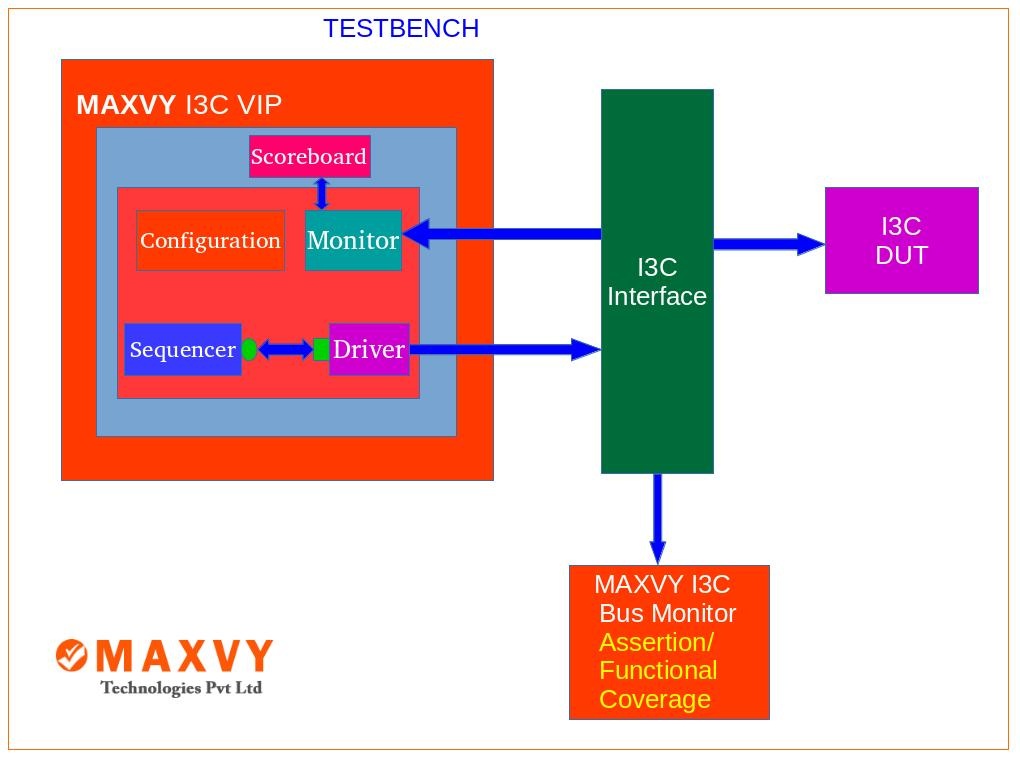

Block Diagram
Key Features
Device can configurable as Master/ Slave/ Secondary Master.
Dynamic addressing.
Secondary Master Capable.
Broadcast and Direct Address support.
Support Single Data Rate (SDR) Mode.
Support High Data Rate (HDR) Mode.
I2C legacy device support.
Hot join.
In-band interrupts.
Mastership request.
Advantages
Configurable Option like Master/Slave/SM.
Supports both Dynamic and Static address.
Simple steps to integrate into customer environment.
